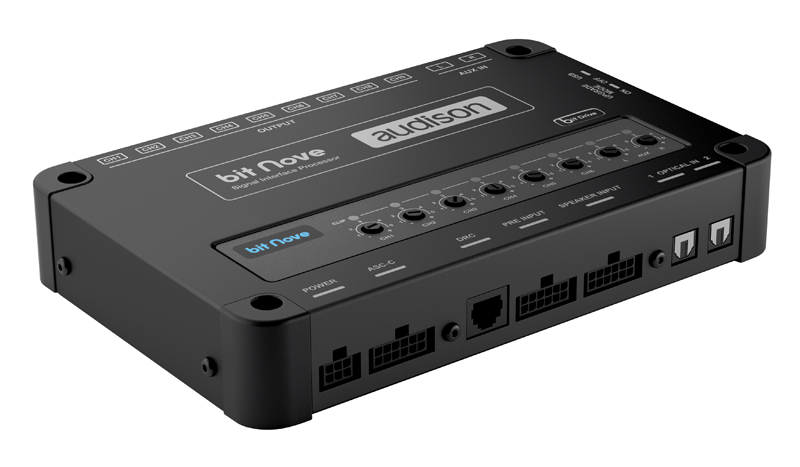

Audison BIT Nove DRC digital sound processors DSP.

Audison BIT NOVE digital processors.

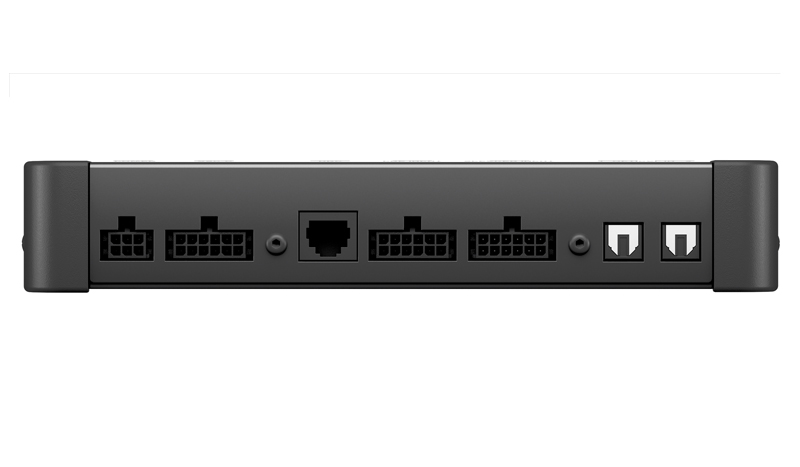

Input Connectivity:
Equipped with 6 high (3 ÷ 20V) and low (1.2 ÷ 8V) level inputs, the bit Nove can be used with any type of aftermarket and OEM source.
The auxiliary RCA input (0.3 ÷ 5V) is perfect to connect your smartphone or tablet to the bit Nove providing the highest possible quality.
The advanced PC software sums up the channels belonging to the same front and de-equalizes the OEM source frequency response in a few simple steps.
There are also two optical digital inputs with a maximum accepted resolution of 192 kHz/24 bit to simultaneously connect an Audison bit DMI to the bit Nove (taking the digital audio from the car MOST bus) and the Hi-Res bit Play HD player.
USS - Universal Speakers Simulator:
Thanks to the integration of the USS technology, the bit Nove can also be connected to headunits featuring the "speaker load detection" circuit that would otherwise mute the audio signal output.

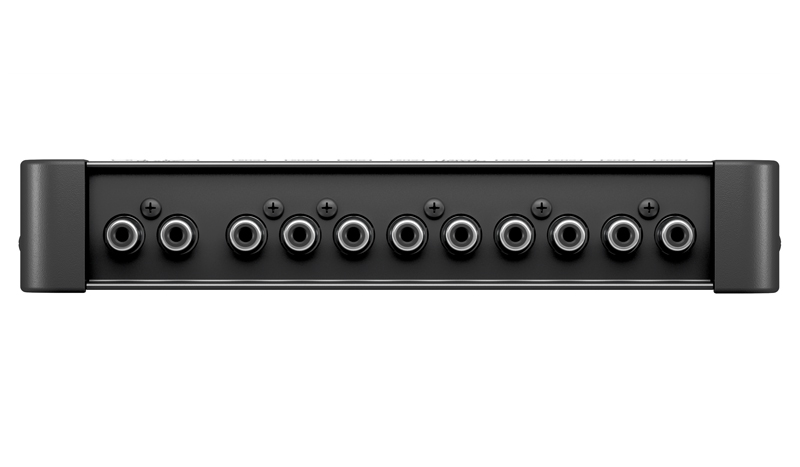

Output Connectivity:
The bit Nove features nine output channels on RCA connectors providing a large number of active multi-amplified configurations, ensuring a wide range of set-up options to the installer.
For each channel, the powerful DSP provides: a 10-pole parametric equalizer allowing for optimal adjustments, a 68 steps frequency crossover, Butterworth or Linkwitz-Riley type filters with slopes from 6 to 24 dB/Oct and a time-delay line.
