Hertz HCP 4M (AB class) marine power amplifier (4-channel).
SKU: 12101
Hertz HCP 4M (AB class) marine power amplifier (4-channel) - a compact design ready to face the open water environment, providing tons of clean power.
Attention !
When placing an order, please pay attention to the line: "For immediate delivery:" The delivery time for out-of-stock items from 1 to 30 days.
For customers from non-EU countries, the cost of goods is automatically reduced by 21% (LV VAT).
For EU companies (with legal VAT), the cost of goods is automatically reduced by 21% (LV VAT).
Worldwide shipping, cost calculated at checkout.
Some items in our store on www.ebay.com
When placing an order, please pay attention to the line: "For immediate delivery:" The delivery time for out-of-stock items from 1 to 30 days.
For customers from non-EU countries, the cost of goods is automatically reduced by 21% (LV VAT).
For EU companies (with legal VAT), the cost of goods is automatically reduced by 21% (LV VAT).
Worldwide shipping, cost calculated at checkout.
Some items in our store on www.ebay.com

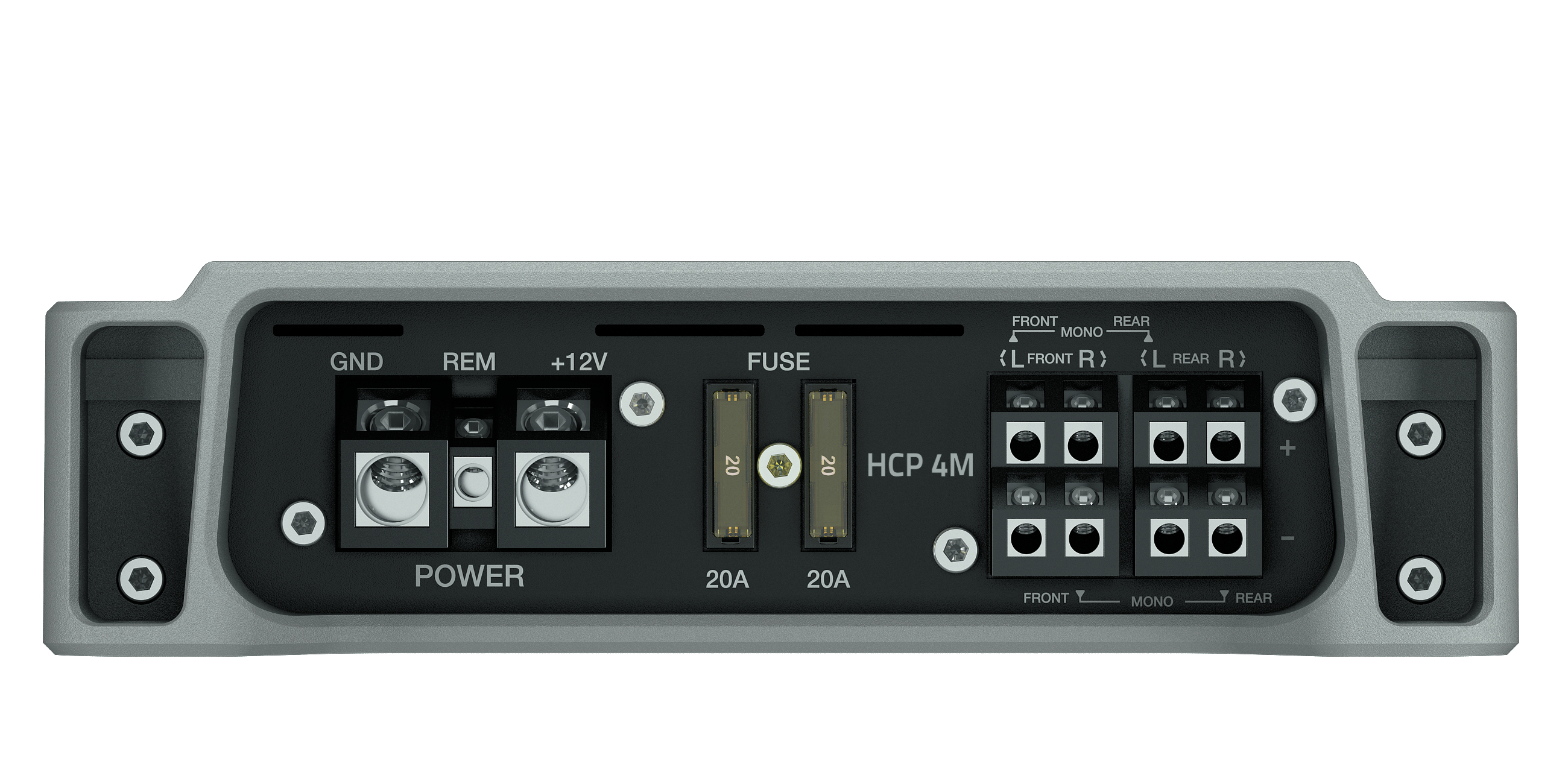

Hertz HCP 4M (AB class) marine power amplifier (4-channel).
HCP 4 M marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power.
The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation.
To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered.
Built up heat is then directed to the special dissipation “wings” along the side of the amplifier.
Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results.

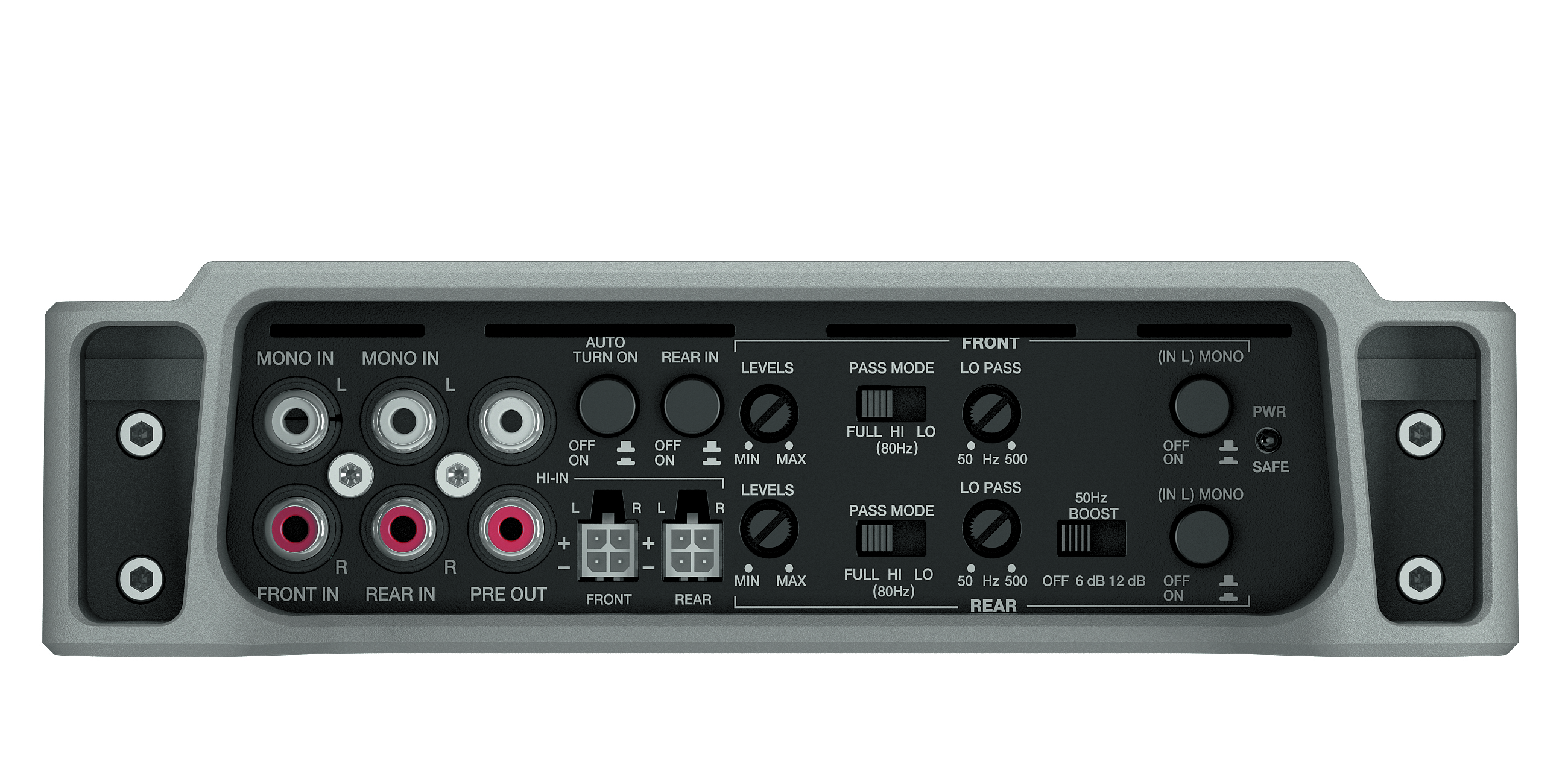

The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies.
The HCP 4 M fourchannel model features also an extended frequency range filter, which can be used when designing active 2-way speaker systems.
| Brand | Hertz |
|---|---|
| By car brand | Universal (All brand) |
| Amplifiers by channels | 4-channel |
| Max Power Output, W | 760 W |
| Nominal Power RMS (4 Ω), W | 3 Ch: 65 W x 2 (4 Ω) + 190 W x 1 (4 Ω) |
| Nominal Power RMS (2 Ω), W | 3 Ch: 95 W x 2 (2 Ω) + 190 W x 1 (4 Ω) |
| Nominal Power RMS (Bridged, 4 Ω), W | 190 x 2 |
| Frequecy range, Hz | 10 - 45000 |
| Signal/noise ratio, dB | 103 |
| Volumetric weight | 4 kg. |
